Lighting products.

Explore lighting for education and architectural spaces. Compare the series and technical configurations.

25 product families

Explore the lighting series.

Suspended rectangular classroom LED luminaire with two pendant supports

Suspended LED classroom light

Classroom lighting

Suspended classroom lighting in Zhicai, Bocai and third-generation formats, with 36 W options and a 5000 K colour temperature.

Technical details

Classroom lighting configurations
Configuration	Power	Size
Zhicai series · 1165 × 310 · 36 W	36 W	1165 × 310
Bocai series · Economy · 1195 × 295 · 36 W	36 W	1195 × 295
Bocai series · Economy · 595 × 595 · 36 W	36 W	595 × 595
Bocai series · Thick-frame · 1195 × 295 · 36 W	36 W	1195 × 295
Bocai series · Thick-frame · 595 × 595 · 36 W	36 W	595 × 595
Third-generation classroom light · 300 × 1165 · 36 W	36 W	300 × 1165

Power: 36 W
Supply: 220 V ~ 50 Hz
Colour rendering: Ra 90
Colour temperature: 5000 K
Mounting: Suspended

Configuration

Selected: Zhicai series · 1165 × 310 · 36 W

Enquire about this configuration

Product information

Request datasheet by enquiry

LED floodlight

MY-OL-FLC

A bracket-mounted LED floodlight series with three power options and a choice of beam angles for architectural and outdoor lighting.

Technical details

A bracket-mounted LED floodlight series with three power options and a choice of beam angles for architectural and outdoor lighting.

MY-OL-FLC configurations
Model	Power
OL-FL-C50	50 W
OL-FL-C100	100 W
OL-FL-C150	150 W

Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Beam angles: 60° / 90° / 120°
Protection: IP65

Explore series Enquire about this series

LED linear light

MY-LP28

A slim 24 V linear light with an aluminium housing, PC diffuser and fixed brackets for building outlines and architectural details.

Technical details

A slim 24 V linear light with an aluminium housing, PC diffuser and fixed brackets for building outlines and architectural details.

MY-LP28 configurations
Length	Power	LED count
1000 mm	10 W	48
510 mm	5 W	24
265 mm	2.5 W	12

Input voltage: DC 24 V
Protection: IP65
Beam angle: 120°
Housing: Aluminium
Diffuser: PC
Mounting: Fixed bracket
LED type: 2835
Safety class: Class III

Explore series Enquire about this series

LED wall washer

MY-LW24

A 24 V architectural wall washer with adjustable brackets, an aluminium housing and tempered-glass cover.

Technical details

MY-LW24 configurations
Configuration	Power	Dimensions / length	LED package	LED count
2835 · 1000 mm · 10 W	10 W	1000 mm	2835	48
2835 · 510 mm · 5 W	5 W	510 mm	2835	24
2835 · 250 mm · 2.5 W	2.5 W	250 mm	2835	12
5050(3in1/4in1) · 1000 mm · 10 W/15 W	10 W/15 W	1000 mm	5050(3in1/4in1)	48
5050(3in1/4in1) · 508 mm · 5 W/7.5 W	5 W/7.5 W	508 mm	5050(3in1/4in1)	24
5050(3in1/4in1) · 255 mm · 2.5 W/3.3 W	2.5 W/3.3 W	255 mm	5050(3in1/4in1)	12

Input voltage: DC 24 V
Protection: IP65
Housing: Aluminium
Cover: Tempered glass
Mounting: Adjustable bracket
Beam angles: 20° / 30° / 20° × 40° / 20° × 60°
Safety class: Class III

Configuration

Selected: 2835 · 1000 mm · 10 W

Enquire about this configuration

Product information

Request datasheet by enquiry

LED point light

MY-D30

A compact point-light series for building outlines and decorative landscape installations, with a PC body and a 120° beam.

Technical details

MY-D30 configurations
Configuration	Power	Dimensions / length	LED count
Ø30 mm · single colour · 0.75 W	0.75 W	Ø30 mm	3
Ø30 mm · RGB · 0.75 W	0.75 W	Ø30 mm	3
Ø40 mm · single colour · 1 W	1 W	Ø40 mm	6
Ø40 mm · RGB · 1 W	1 W	Ø40 mm	6
Ø40 mm · RGBW · 1.44 W	1.44 W	Ø40 mm	6
Ø50 mm · single colour · 1.2 W	1.2 W	Ø50 mm	7/6
Ø50 mm · RGB · 1.2 W	1.2 W	Ø50 mm	7/6
Ø50 mm · RGBW · 1.75 W	1.75 W	Ø50 mm	7/6

Input voltage: DC 12 V
Protection: IP65
Beam angle: 120°
Body: UV-resistant PC
LED type: 3535
Safety class: Class III

Configuration

Selected: Ø30 mm · single colour · 0.75 W

Enquire about this configuration

Product information

Request datasheet by enquiry

More lighting series.

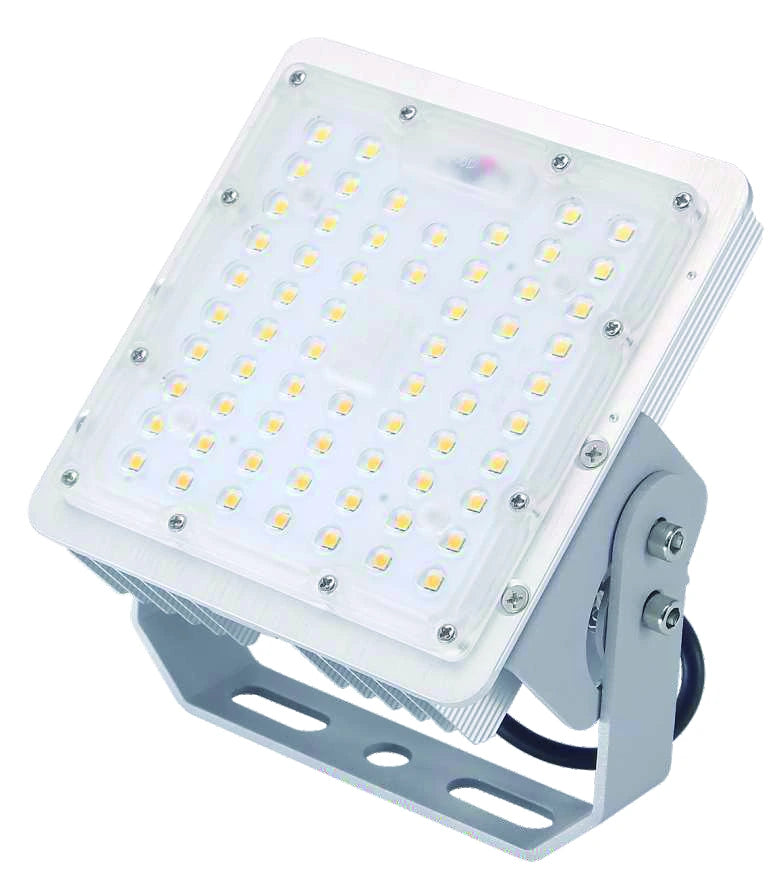

LED floodlight

MY-OL-FLE

A compact, bracket-mounted 50 W floodlight with three beam-angle options.

Technical details

Power: 50 W
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Beam angles: 60° / 90° / 120°
Protection: IP65

Model configurations
Model	Power	Voltage options
OL-FL-E50	50 W	AC 85–265 V

Model configuration

Enquire about this configuration

Product information

Request datasheet by enquiry

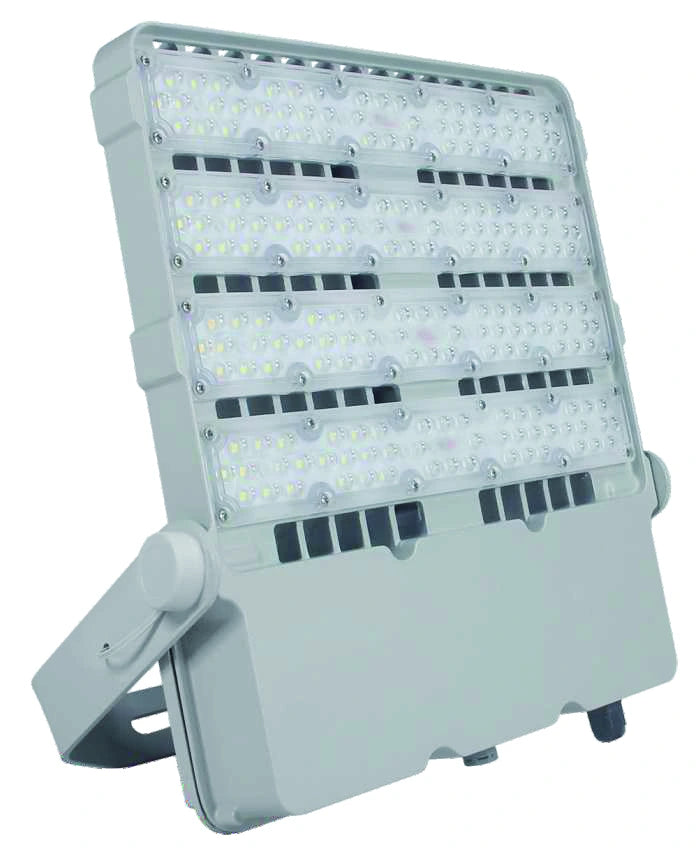

LED floodlight

MY-OL-FLF

A bracket-mounted floodlight family spanning 50–300 W, including an asymmetric beam option.

Technical details

Power options: 50 / 100 / 150 / 200 / 300 W
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Beam angles: 30° / 60° / 90° / 80° × 140°
Protection: IP65

Model configurations
Model	Power
OL-FL-F50	50 W
OL-FL-F100	100 W
OL-FL-F150	150 W
OL-FL-F200	200 W
OL-FL-F300	300 W

Model configuration

Enquire about this configuration

Product information

Request datasheet by enquiry

MY-OL-FLG

LED floodlight

MY-OL-FLG

A slim floodlight family with eight power options from 10 to 300 W.

Technical details

Power options: 10 / 20 / 30 / 50 / 100 / 150 / 200 / 300 W
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Beam angles: 30° / 60° / 90° / 120°

Model configurations
Model	Power
OL-FL-G10	10 W
OL-FL-G20	20 W
OL-FL-G30	30 W
OL-FL-G50	50 W
OL-FL-G100	100 W
OL-FL-G150	150 W
OL-FL-G200	200 W
OL-FL-G300	300 W

Model configuration

Enquire about this configuration

Product information

Request datasheet by enquiry

High-power LED floodlight

MY-OL-SLD

A high-power floodlight family with 400–1500 W options and bracket mounting.

Technical details

Power options: 400 / 600 / 800 / 1200 / 1500 W
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Beam angles: 30° / 60° / 90° / 120°
Protection: IP65

Model configurations
Model	Power
OL-SLD-A400	400 W
OL-SLD-A600	600 W
OL-SLD-A800	800 W
OL-SLD-A1200	1200 W
OL-SLD-A1500	1500 W

Model configuration

Enquire about this configuration

Product information

Request datasheet by enquiry

LED high-bay light

MY-OL-HB-B

A round suspended LED luminaire with 100, 150 and 200 W configurations.

Technical details

Power options: 100 / 150 / 200 W
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Beam angles: 60° / 90° / 120°
Protection: IP65

Model configurations
Model	Power
OL-HB-B100	100 W
OL-HB-B150	150 W
OL-HB-B200	200 W

Model configuration

Enquire about this configuration

Product information

Request datasheet by enquiry

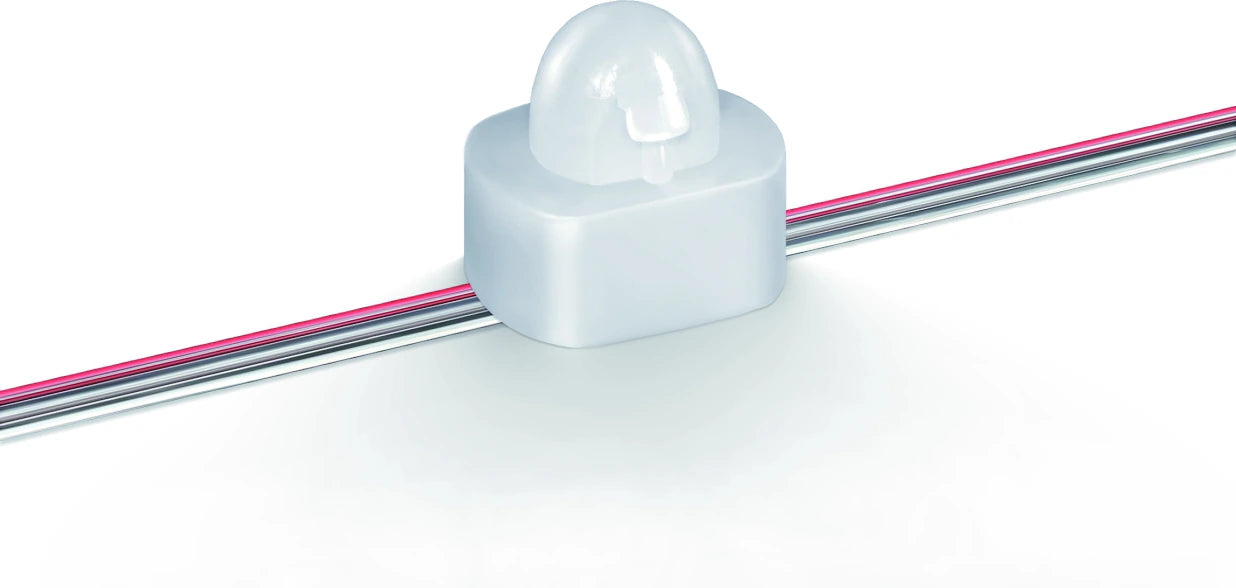

LED point light

MY-D12

A compact push-in point light with white, RGB and RGBW configurations.

Technical details

Power: 0.25 W
Input voltage options: DC 5 V / DC 12 V
Dimensions: 20 × 15.2 × 18.5 mm
Beam angle: 120°
LED type: 5050
Protection: IP66
Body colour: White
Mounting: Push-in

Model configurations
Model	Power	Light colour	Dimensions	Voltage options
DP12-W	0.25 W	White	20 × 15.2 × 18.5 mm	DC 5 V / DC 12 V
DP12-RGB	0.25 W	RGB	20 × 15.2 × 18.5 mm	DC 5 V / DC 12 V
DP12-RGBW	0.25 W	RGBW	20 × 15.2 × 18.5 mm	DC 5 V / DC 12 V

Model configuration

Enquire about this configuration

Product information

Request datasheet by enquiry

Architectural lighting.

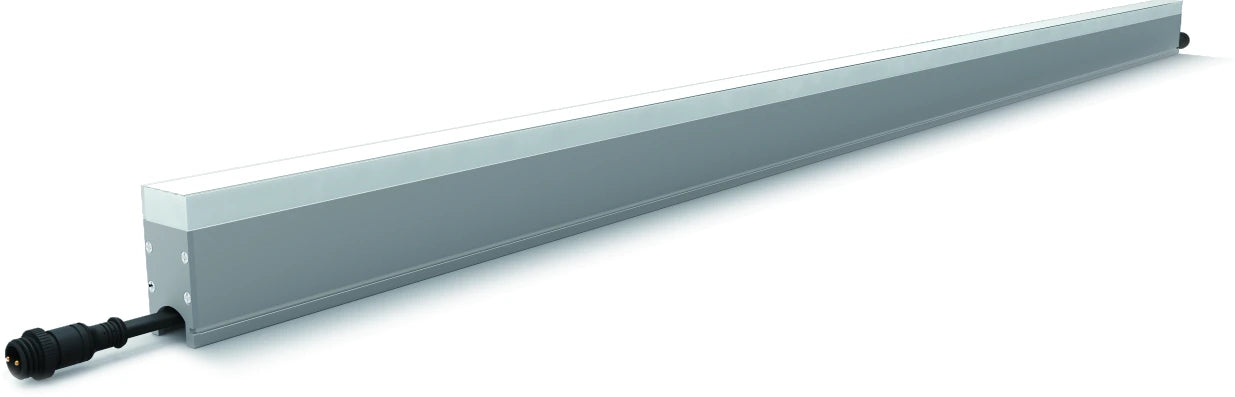

Tall silver linear light with continuous diffuser and end connector

LED linear light

MY-LY24

A fixed-bracket linear light with a PMMA diffuser, in three lengths and two LED-package formats.

Technical details

Input voltage: DC 24 V
Housing: Aluminium
Cover: PMMA
Mounting: Fixed bracket
Protection: IP65
Beam angles: 120°

Model configurations
Power	Dimensions / length	Voltage options	LED package	LED count
10 W	1000 mm	DC 24 V	2835	48
5 W	500 mm	DC 24 V	2835	24
2.5 W	250 mm	DC 24 V	2835	12
10 W/15 W	1000 mm	DC 24 V	5050(3in1/4in1)	48
5 W/7.5 W	500 mm	DC 24 V	5050(3in1/4in1)	24
2.5 W/3.3 W	250 mm	DC 24 V	5050(3in1/4in1)	12

Model configuration

Selected: 2835 · 1000 mm · 48 LEDs · 10 W

Enquire about this configuration

Product information

Request datasheet by enquiry

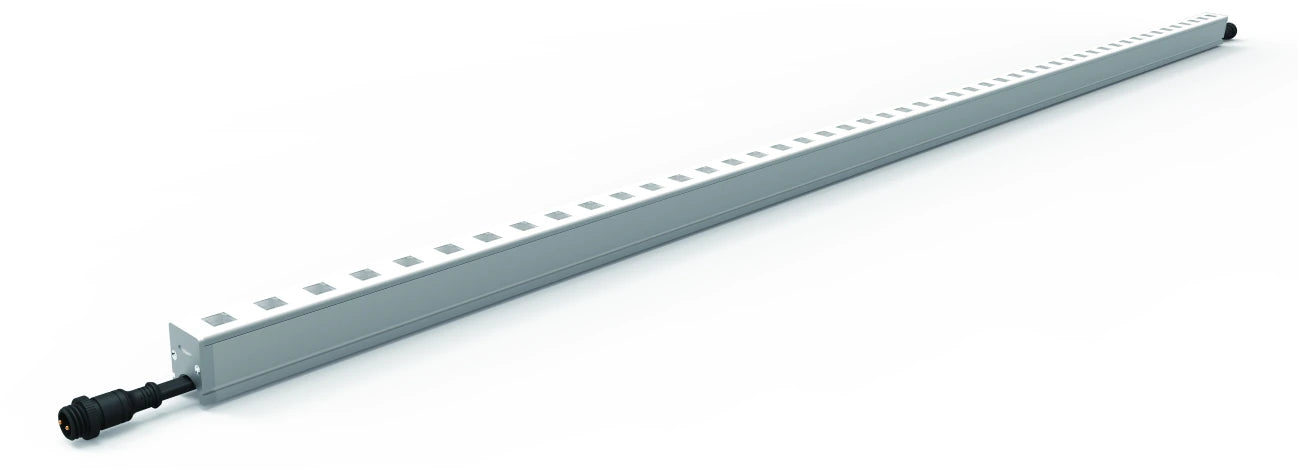

Silver linear light with perforated upper cover and end connector

LED linear light

MY-LC26

An adjustable-bracket linear light with a perforated aluminium cover and three length options.

Technical details

Input voltage: DC 24 V
Housing: Aluminium
Cover: Perforated aluminium
Mounting: Adjustable bracket
Protection: IP65
Beam angles: 120°

Model configurations
Power	Dimensions / length	Voltage options	LED package	LED count
10 W	1000 mm	DC 24 V	5050	48
5 W	500 mm	DC 24 V	5050	24
2.5 W	250 mm	DC 24 V	5050	12
10 W	1000 mm	DC 24 V	5050(3in1)	48
5 W	500 mm	DC 24 V	5050(3in1)	24
2.5 W	250 mm	DC 24 V	5050(3in1)	12

Model configuration

Selected: 5050 · 1000 mm · 48 LEDs · 10 W

Enquire about this configuration

Product information

Request datasheet by enquiry

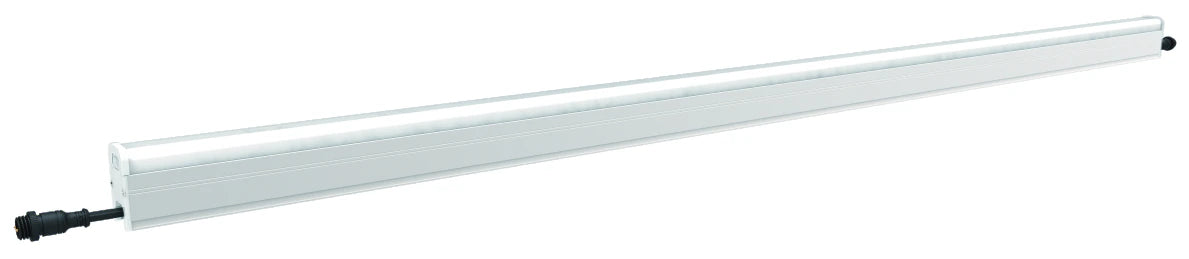

White linear light with continuous diffuser and grooved aluminium housing

LED linear light

MY-2540F

A fixed-bracket linear light with a continuous PMMA diffuser and 24 V supply.

Technical details

Input voltage: DC 24 V
Housing: Aluminium
Cover: PMMA
Mounting: Fixed bracket
Protection: IP65
Beam angles: 120°

Model configurations
Power	Dimensions / length	Voltage options	LED package	LED count
10 W	1000 mm	DC 24 V	2835	48
5 W	500 mm	DC 24 V	2835	24
2.5 W	250 mm	DC 24 V	2835	12
10 W/15 W	1000 mm	DC 24 V	5050(3in1/4in1)	48
5 W/7.5 W	500 mm	DC 24 V	5050(3in1/4in1)	24
2.5 W/3.3 W	250 mm	DC 24 V	5050(3in1/4in1)	12

Model configuration

Selected: 2835 · 1000 mm · 48 LEDs · 10 W

Enquire about this configuration

Product information

Request datasheet by enquiry

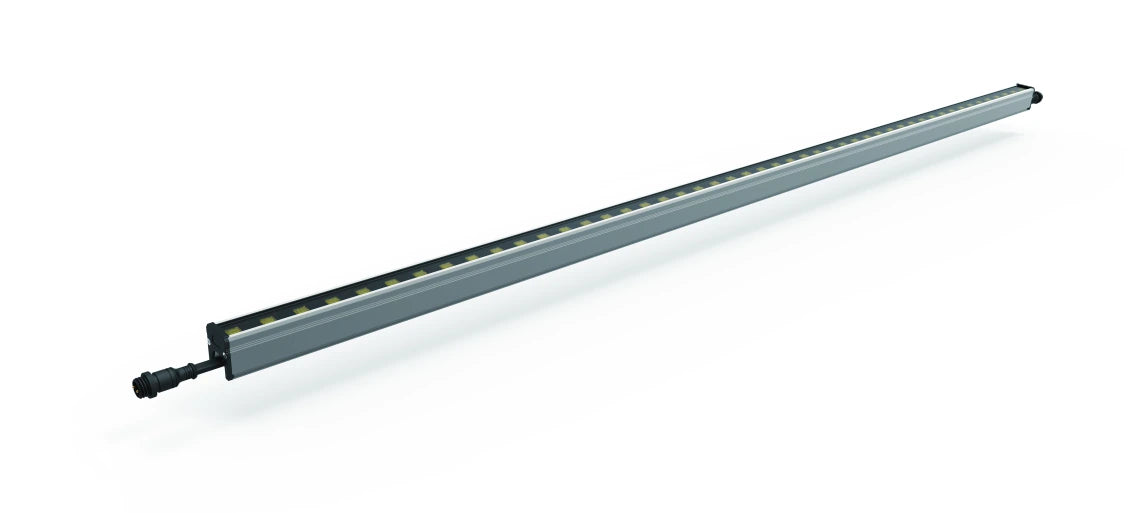

Narrow grey linear light with open light channel and end connector

LED linear light

MY-2326B

A narrow linear fixture with a PMMA diffuser for building outlines and architectural details.

Technical details

Input voltage: DC 24 V
Housing: Aluminium
Cover: PMMA
Mounting: Fixed bracket
Protection: IP65
Beam angles: 120°

Model configurations
Power	Dimensions / length	Voltage options	LED package	LED count
10 W	1000 mm	DC 24 V	2835	48
5 W	500 mm	DC 24 V	2835	24
2.5 W	250 mm	DC 24 V	2835	12
10 W/15 W	1000 mm	DC 24 V	5050(3in1/4in1)	48
5 W/7.5 W	500 mm	DC 24 V	5050(3in1/4in1)	24
2.5 W/3.3 W	250 mm	DC 24 V	5050(3in1/4in1)	12

Model configuration

Selected: 2835 · 1000 mm · 48 LEDs · 10 W

Enquire about this configuration

Product information

Request datasheet by enquiry

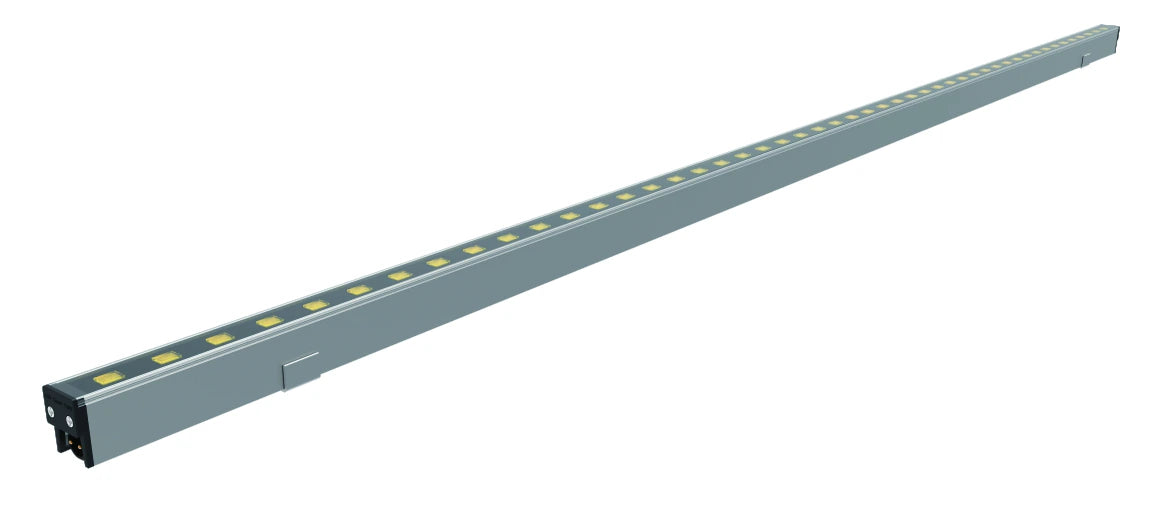

Slim grey linear fixture with visible individual LED packages

LED linear light

MY-1723P

A slim 2835 linear fixture with 1000, 508 and 262 mm length options.

Technical details

Input voltage: DC 24 V
Housing: Aluminium
Cover: PC
Mounting: Fixed bracket
Protection: IP65
Beam angles: 120°

Model configurations
Power	Dimensions / length	Voltage options	LED package	LED count
10 W	1000 mm	DC 24 V	2835	48
5 W	508 mm	DC 24 V	2835	24
2.5 W	262 mm	DC 24 V	2835	12

Model configuration

Selected: 2835 · 1000 mm · 48 LEDs · 10 W

Enquire about this configuration

Product information

Request datasheet by enquiry

Single-row optical wall washer with pivoting brackets

LED wall washer

MY-3928

An adjustable wall-washing series with single-row optics and multiple length and LED configurations.

Technical details

Input voltage: DC 24 V
Housing: Aluminium
Cover: Tempered glass
Mounting: Adjustable bracket
Protection: IP65
Beam angles: 15° / 30° / 45° / 10 × 40° / 10 × 60°

Model configurations
Power	Dimensions / length	Voltage options	LED package	LED count
36 W	1000 mm	DC 24 V	3030	36
18 W	508 mm	DC 24 V	3030	18
12 W	344 mm	DC 24 V	3030	12
24 W	1000 mm	DC 24 V	3030	24
12 W	508 mm	DC 24 V	3030	12
6 W	255 mm	DC 24 V	3030	6
18 W	1000 mm	DC 24 V	3030	18
9 W	508 mm	DC 24 V	3030	9
6 W	255 mm	DC 24 V	3030	6
36 W	1000 mm	DC 24 V	5050(4in1)	24
18 W	508 mm	DC 24 V	5050(4in1)	12
9 W	255 mm	DC 24 V	5050(4in1)	6

Model configuration

Selected: 3030 · 1000 mm · 36 LEDs · 36 W

Enquire about this configuration

Product information

Request datasheet by enquiry

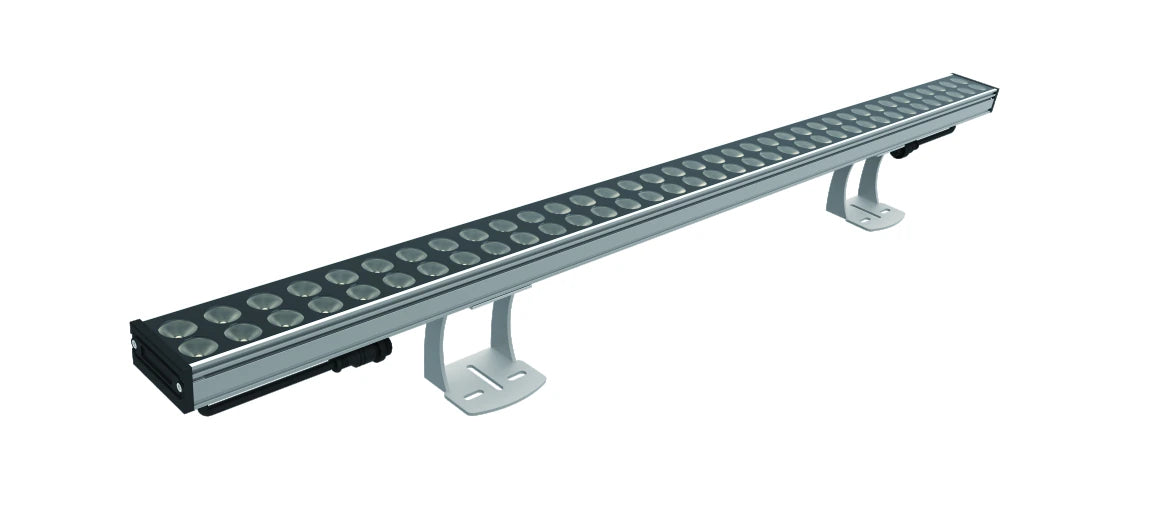

Double-row optical wall washer with two mounting brackets

LED wall washer

MY-6029

A double-row wall-washing series with six length and power configurations.

Technical details

Housing: Aluminium
Cover: Tempered glass
Mounting: Adjustable bracket
Protection: IP65
Beam angles: 20° / 30° / 20 × 40° / 20 × 60°

Model configurations
Power	Dimensions / length	LED package	LED count
72 W	1000 mm	3030	72
36 W	506 mm	3030	36
24 W	340 mm	3030	24
48 W	1000 mm	3030	48
24 W	498 mm	3030	24
12 W	246 mm	3030	12

Model configuration

Selected: 3030 · 1000 mm · 72 LEDs · 72 W

Enquire about this configuration

Product information

Request datasheet by enquiry

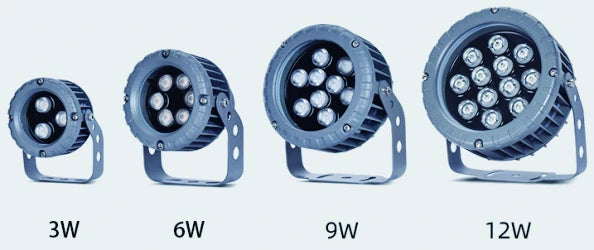

LED architectural projector

MY-TY

A bracket-mounted architectural projector family with eight catalogue configurations.

Technical details

Protection: IP66
Cover: Tempered glass

Model configurations
Model	Power	Light colour	Dimensions / length	Voltage options	LED count
TY95	3 W	DW-RGB-RGBW	95 × 130 mm	24 V	3
TY95	6 W	DW-RGB-RGBW	95 × 130 mm	24 V	6
TY130	9 W	DW-RGB-RGBW	130 × 175 mm	24 V	9
TY150	12 W	DW-RGB-RGBW	150 × 175 mm	24 V/220 V	12
TY180	18 W	DW-RGB-RGBW	180 × 170 mm	24 V/220 V	18
TY180	24 W	DW-RGB-RGBW	180 × 170 mm	24 V/220 V	24
TY230	36 W	DW-RGB-RGBW	230 × 260 mm	24 V/220 V	36
TY290	48 W	DW-RGB-RGBW	290 × 340 mm	24 V/220 V	48

Model configuration

Selected: TY95 · 3 LEDs · 3 W

Enquire about this configuration

Product information

Request datasheet by enquiry

LED inground light

MY-DMY

A recessed inground family with round fixtures, listed cutout sizes and on-off control.

Technical details

Protection: IP66
Cover: Tempered glass
Control: ON-OFF
Input voltage: 24 V
Mounting: Recessed

Model configurations
Model	Power	Light colour	Dimensions / length	Voltage options	LED count	Cutout
DMY65	1 W	DW	65 × 80 mm	24 V	1	58 mm
DMY100	3 W	DW	100 × 90 mm	24 V	3	95 mm
DMY120	6 W	DW	120 × 90 mm	24 V	6	115 mm
DMY160	9 W	DW	160 × 90 mm	24 V	9	145 mm
DMY160	12 W	DW	160 × 90 mm	24 V	12	145 mm
DMY180	18 W	DW	180 × 90 mm	24 V	18	155 mm
DMY220	24 W	DW	220 × 90 mm	24 V	24	205 mm
DMY250	36 W	DW	250 × 90 mm	24 V	36	240 mm
DMY300	36 W	DW	300 × 90 mm	24 V	48	290 mm

Model configuration

Selected: DMY65 · 1 LEDs · 1 W

Enquire about this configuration

Product information

Request datasheet by enquiry

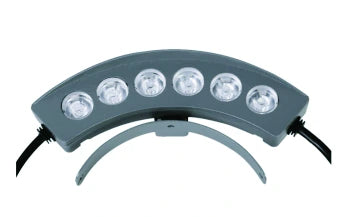

LED tile-profile light

MY-CG

A curved architectural fixture family with four catalogue model configurations.

Technical details

Protection: IP66
Cover: Tempered glass
Control: ON-OFF
Input voltage: 24 V

Model configurations
Model	Power	Light colour	Dimensions / length	Voltage options	LED count
CG3D	3 W	DW	120 × 81 mm	24 V	3
CG6D	6 W	DW	178 × 88 mm	24 V	6
CG9D	12 W	DW	230 × 90 mm	24 V	9
CG12D	18 W	DW	222 × 130 mm	24 V	12

Model configuration

Selected: CG3D · 3 LEDs · 3 W

Enquire about this configuration

Product information

Request datasheet by enquiry

Floodlights & projectors.

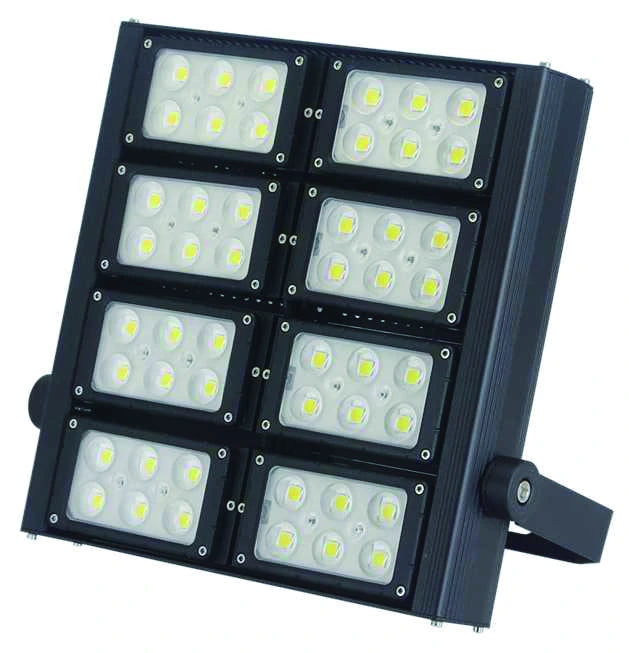

LED floodlight

MY-OL-FLA

A modular LED floodlight family with seven power configurations and two beam-angle options.

Technical details

Protection: IP65
Beam angles: 60° / 90°
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80

Model configurations
Model	Power	Voltage options
OL-FL-A50	50 W	AC 85–265 V
OL-FL-A100	100 W	AC 85–265 V
OL-FL-A150	150 W	AC 85–265 V
OL-FL-A200	200 W	AC 85–265 V
OL-FL-A300	300 W	AC 85–265 V
OL-FL-A400	400 W	AC 85–265 V
OL-FL-A500	500 W	AC 85–265 V

Model configuration

Selected: OL-FL-A50 · 50 W

Enquire about this configuration

Product information

Request datasheet by enquiry

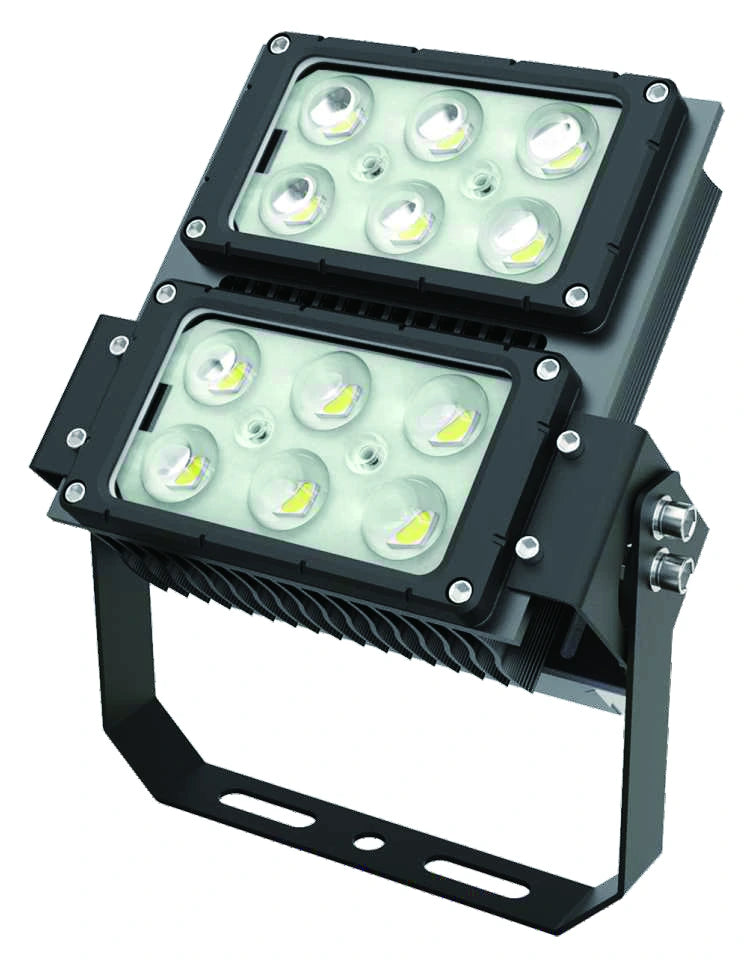

LED floodlight

MY-OL-FLB

A bracket-mounted LED floodlight family with two catalogue power ranges and three beam-angle options.

Technical details

Protection: IP65
Beam angles: 60° / 90° / 120°
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80

Model configurations
Model	Power	Voltage options
OL-FL-B50	30–50 W	AC 85–265 V
OL-FL-B100	80–100 W	AC 85–265 V

Model configuration

Selected: OL-FL-B50 · 30–50 W

Enquire about this configuration

Product information

Request datasheet by enquiry

LED architectural projector

MY-TF

A square architectural projector family with paired model codes and five power configurations.

Technical details

Protection: IP66
Beam angles: 5° / 10° / 15° / 30° / 45°
Housing: Die-cast aluminium alloy
Cover: Tempered glass
Mounting: Adjustable bracket
LED type: 3535

Model configurations
Model	Power	Light colour	Dimensions / length	Voltage options	LED count
TF96/TF96Z	18 W	DW-RGB-RGBW	95 × 95 × 146 mm	24 V / 220 V	9
TF135/TF135Z	32 W	DW-RGB-RGBW	135 × 135 × 215 mm	24 V / 220 V	16
TF170/TF170Z	48 W	DW-RGB-RGBW	170 × 170 × 245 mm	24 V / 220 V	24
TF195/TF195Z	72 W	DW-RGB-RGBW	195 × 195 × 310 mm	24 V / 220 V	36
TF213/TF213Z	120 W	DW-RGB-RGBW	213 × 213 × 310 mm	24 V / 220 V	60

Model configuration

Selected: TF96/TF96Z · 18 W

Enquire about this configuration

Product information

Request datasheet by enquiry

LED floodlight

MY-OL-FLD

A modular floodlight family with nine power configurations, an adjustable bracket and asymmetric beam options.

Technical details

Power options: 50 / 100 / 150 / 200 / 250 / 300 / 400 / 500 / 600 W
Input voltage: AC 85–265 V
Colour temperature: 2800–6500 K
Power factor: > 0.9
Colour rendering: Ra > 80
Protection: IP65
Beam angles: 30° / 60° / 90° / 70° × 145°

Model configurations
Model	Power	Voltage options
OL-FL-D50	50 W	AC 85–265 V
OL-FL-D100	100 W	AC 85–265 V
OL-FL-D150	150 W	AC 85–265 V
OL-FL-D200	200 W	AC 85–265 V
OL-FL-D250	250 W	AC 85–265 V
OL-FL-D300	300 W	AC 85–265 V
OL-FL-D400	400 W	AC 85–265 V
OL-FL-D500	500 W	AC 85–265 V
OL-FL-D600	600 W	AC 85–265 V

Model configuration

Selected: OL-FL-D50 · 50 W

Enquire about this configuration

Product information

Request datasheet by enquiry

Start a project enquiry.

Discuss your project
